Low Price 1U 1550nm DBC Fiber Optic CATV EDFA

FOB Reference Price:Get Latest Price
$140.00 - $800.00 / Piece | 1 Piece/Pieces (Min. Order)
Support Sea freight
Report Suspicious Activity
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Model Number:
Low Price 1U 1550nm DBC Fiber Optic CATV EDFA
Optical input power:
Output port:
1 port
Each output power:
Optical connector:
pump laser:
JDSU or Oclaro pump
Power supply voltage:
AC220V & AC110V & DC48V
Additional function:
SNMP and dual plug in power supply
3 year
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Low Price 1U 1550nm DBC Fiber Optic CATV EDFA
Packaging & Delivery
Packaging Details
1pc / Box, 2pcs / Carton for Low Price 1U 1550nm DBC Fiber Optic CATV EDFA
Qingdao/Shenzhen/As the customer's reyuire

Low Price 1U 1550nm DBC Fiber Optic CATV EDFA



Product Description


1. 15EAxx CATV EDFA is based on the paragraph 08EAxx improvement model, mainly to solve the external hot backup power supply, users can configure backup power supply according to the power of arbitrary, damaged power supply does not need to open lid can be arbitrary replacement, light box adopts modular structure and convenient maintenance.


2. 15EAxx Fiber optic CATV EDFA is an important transmission equipment of 1550nm optical fiber communication system, mainly used for television image signals, digital TV, telephone voice signal and the signal of the data (or compressed data) optical fiber transmission over a long distance.


3. WS-15EAxx series Low Price 1U 1550nm DBC Fiber Optic CATV EDFA technical performance indicators of erbium doped fiber amplifier and the technology can be comparable to similar imported models, and cost-effective, easy installation is choice equipment to build large and medium-size of 1550nm catv optical fiber transmission network.

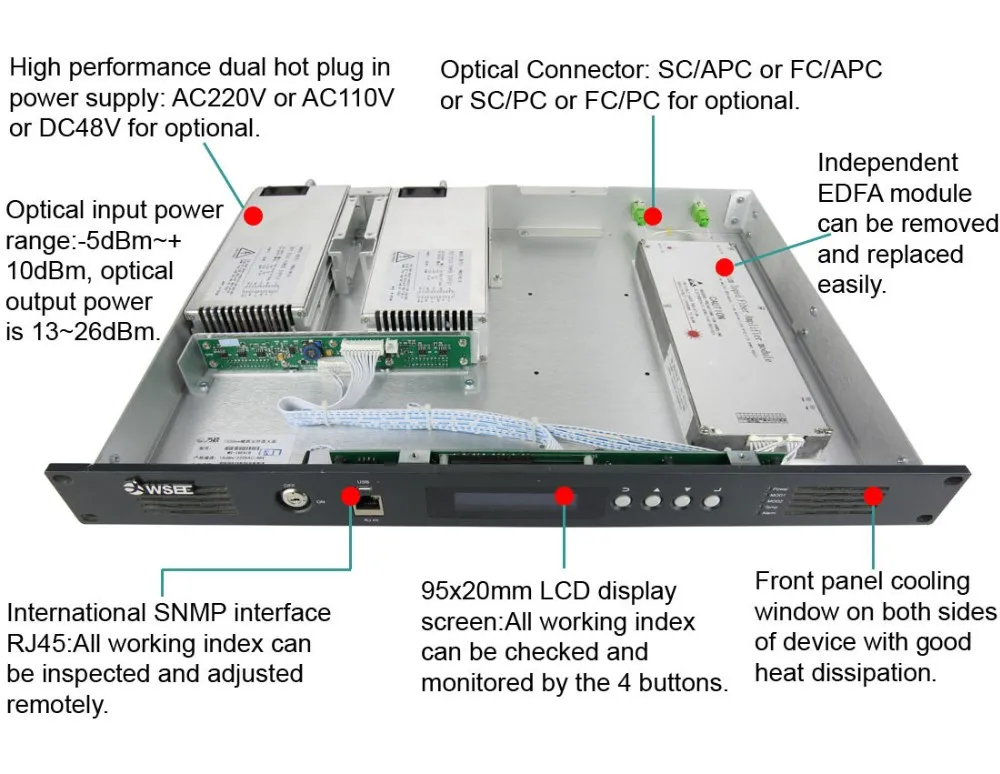

Technical Data

                             CATV EDFA



Input Power Range

-5dBm~+10 dBm

Normal Input Power

+3 dBm

Output Optical Power

13dBm~26 dBm

Optical Connector


Optical Power Stability


Return Loss(Input/Output)


Pump Leak(Input/Output)


Supply Voltage

AC90~265V & DC-48V (DC30V~72V)



Working Temp.

-5℃~+55℃ or customized

Relative Humidity

95%,no condense

Storage Temp.


Net Size


Unit Package Size




Unit Package N.W.


Carton G.W.






Model: WS-15EA18-2S-1W-N

According to equipment model WS-15EA18-2S-1W-N Low Price 1U 1550nm DBC Fiber Optic CATV EDFA, Input Optical Power is -5~+10dBm, Output Power is 18dBm, 220V voltage, SC/APC fiber optical connector, 1 output with WDM and SNMP.




Package & Payment





Low Price 1U 1550nm DBC Fiber Optic CATV EDFA Package: 1pc / Box, 2pcs / Carton.






Our Services

         1.  Warranty 1 years: Direction modulation optical transmitter, High power optical fiber amplifier, Optical receiver, CATV trunk amplifier, FTTH optical receiver.


        2.  Warranty 3 years: EDFA, External modulation optical transmitter.


        3.  Bulk orders can deliver a certain number of wearing parts, such as power supplies, modules, etc.


        4.  The damaged products: during warranty period, we can provide parts to replace or repair for free. Outside the warranty period, lifetime warranty, charge a maintenance costs, round-trip freight shall be borne by the buyer. Bulk orders if had provided a certain percentage of free maintenance parts, no warranty.


       5.  Batch problem: If the products appear batch problems, can be returned.

       6. OEM&ODM: We can help you to design and put your good idea into products.
       7. Training service support: Provide free training service on installation and debugging.
Company Information


Shandong Wanshuo Optoelectronic Equipment Co., Ltd has been manufacturing CATV Optical equipment since 2008. We have been mainly engaged in designing, researching, manufacturing and marketing CATV HFC network equipment.


Our company has been researching and developing HFC network products, including 1550nm EDFA, Multi-ports High Power EDFA, 1550nm/1310nm Optical Transmitters, Outdoor Optical Receivers, FTTH Optical Nodes, Passive FTTH Optical Nodes, CATV Amplifiers and so on.


After years of development, we have strong overall operational capabilities, rich experiences in international trade, and have made good relationship with many countries like USA, India, Vietnam, Spain, Romania, Ukraine and Russia, Peru, Colombia, African countries, etc. We are looking forward to forming business relationship with new clients around the world.


If you are interested in our products, welcome to your inquiry and visit our factory.






     1.  Are you a factory or trading company?

As a professional manufacturer, we supply full CATV & HFC network products more than 10 years in China.


2.  Why should I choose you?

We can offer factory price, good quality, best service and long warranty.


3.  How about your product service?

We can offer OEM & ODM, print your band, your design on the product based on your quantity.


4.  How about the payment terms?

We accept bank transfer, escrow on line, western union, money gram, paypal.


5.  How to ship the package?

DHL, UPS, EMX, TNT, Fedex, by air, by sea.


6.  What kind of warranty do you offer?

Our excellent after-sale service team will provide to you with broader service plat form. We offer at lease one year warranty for our products without man-made damage.


7.  What is your MOQ?

No MOQ for any sample test.
